My aim was to design a tool that would allow rescue forces for remote estimation and expand perception beyond limitations of human eyesight.



The drone could be used by water rescue, marine rescue, police and border control.

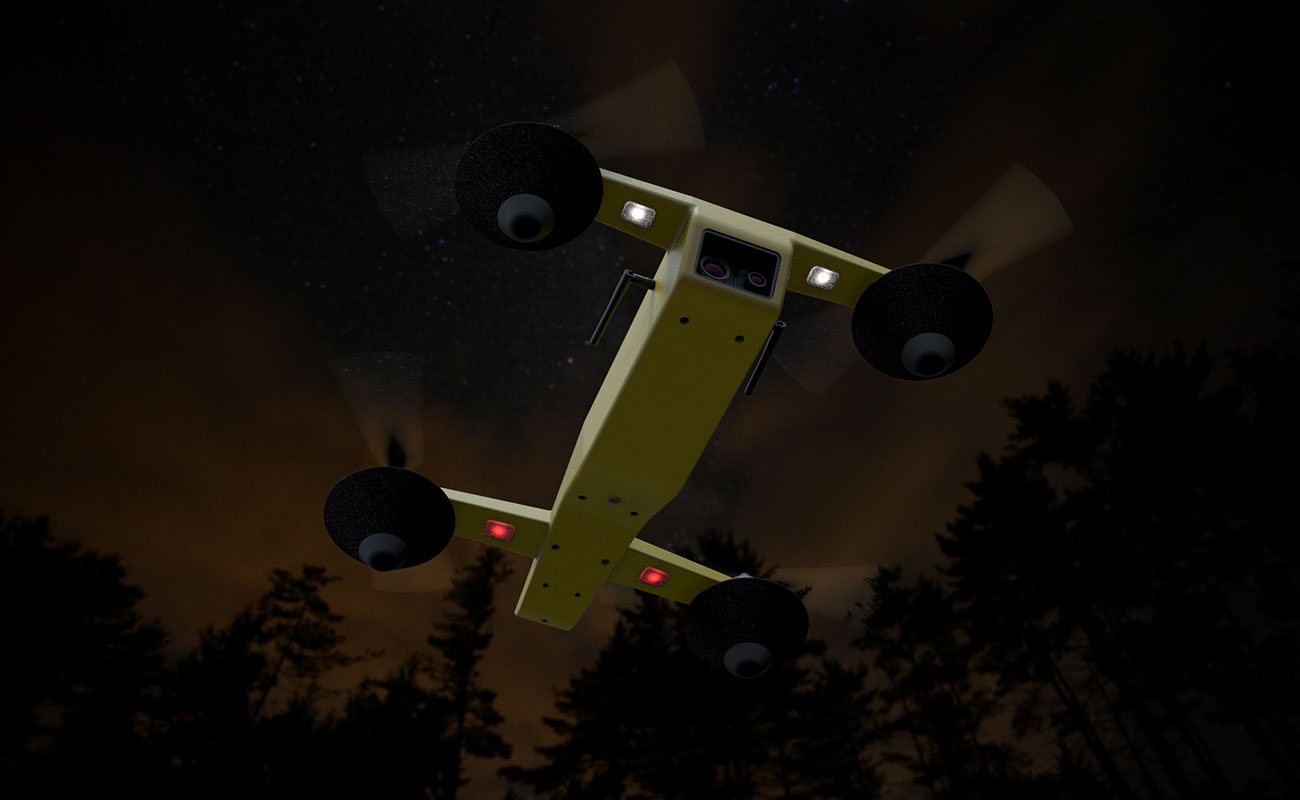

It is equipped with a regular vision and a thermal camera.

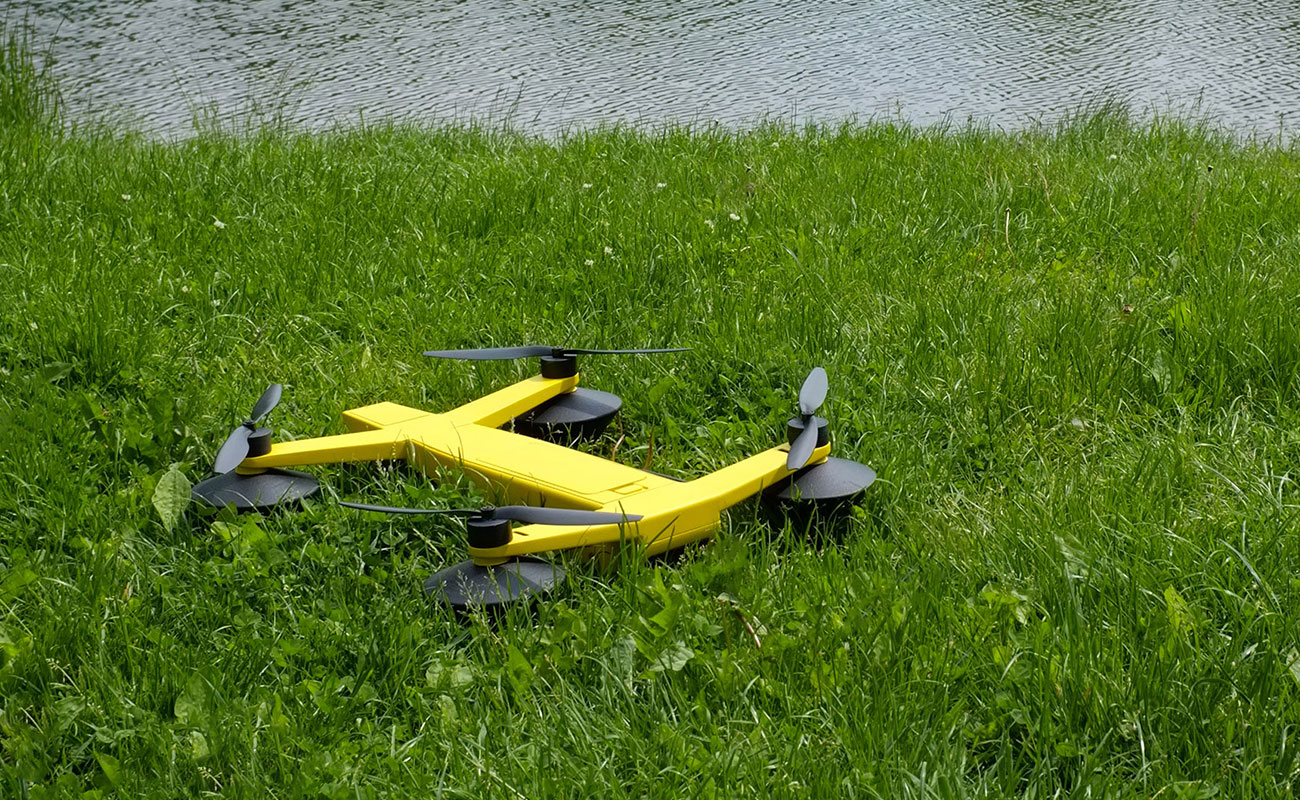

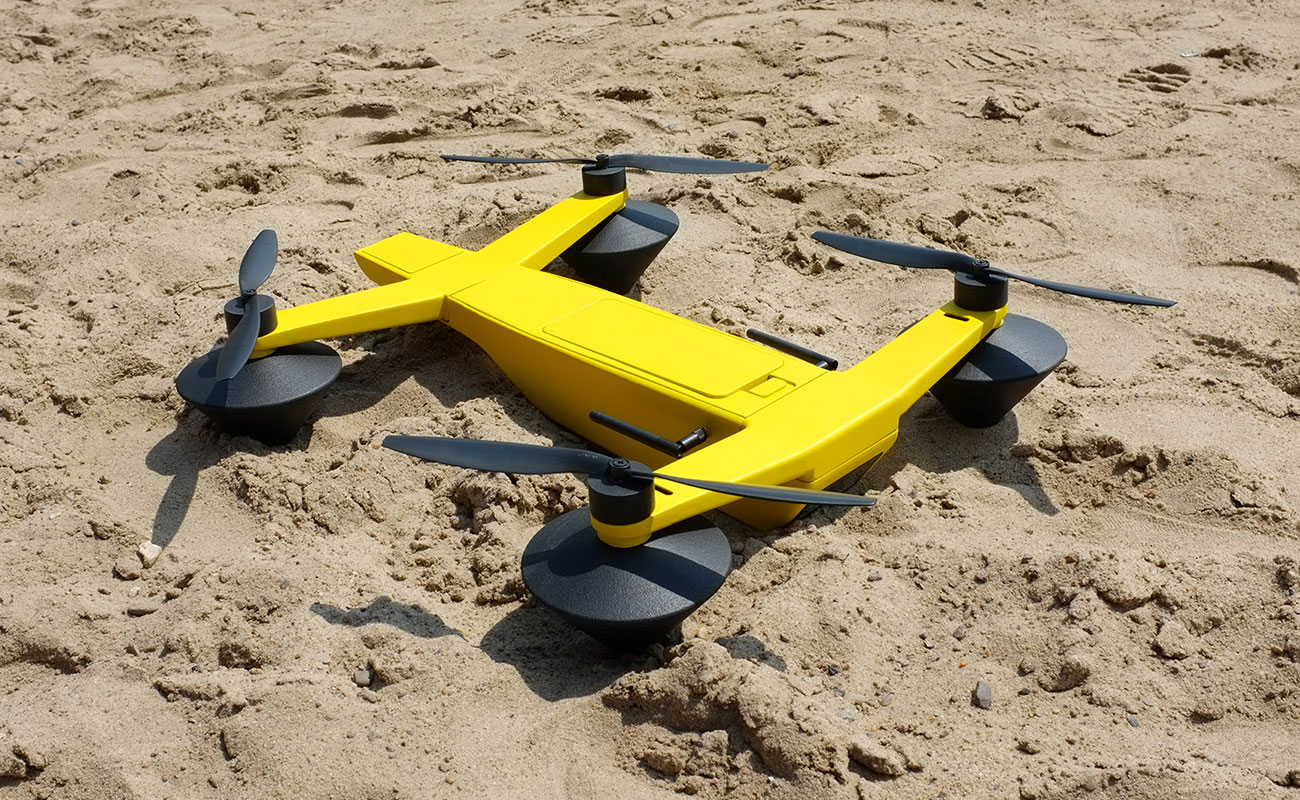

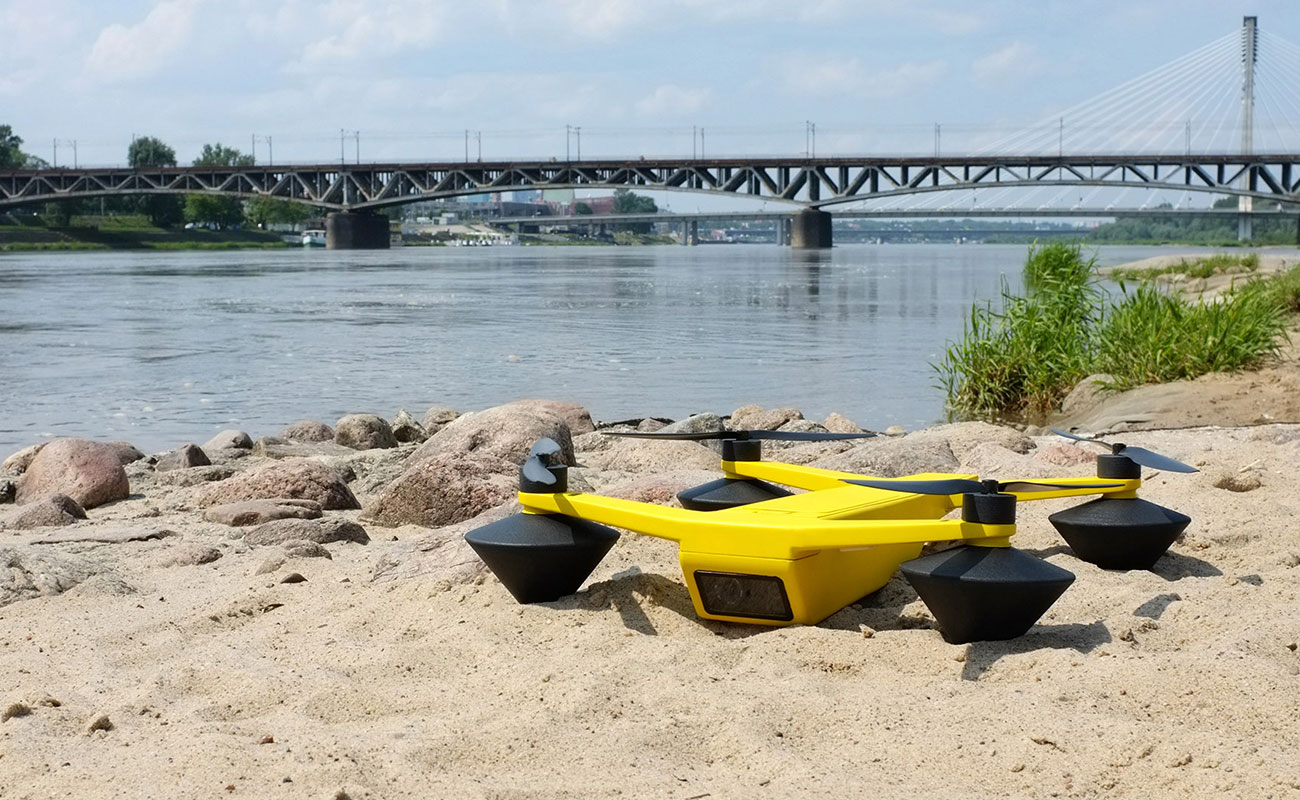

Interchangeable floaters made from polyethylene foam allow takeoff and landing on sand, grass and water.

Quick battery replacement enables sequential charging and almost uninterrupted continuous operation.

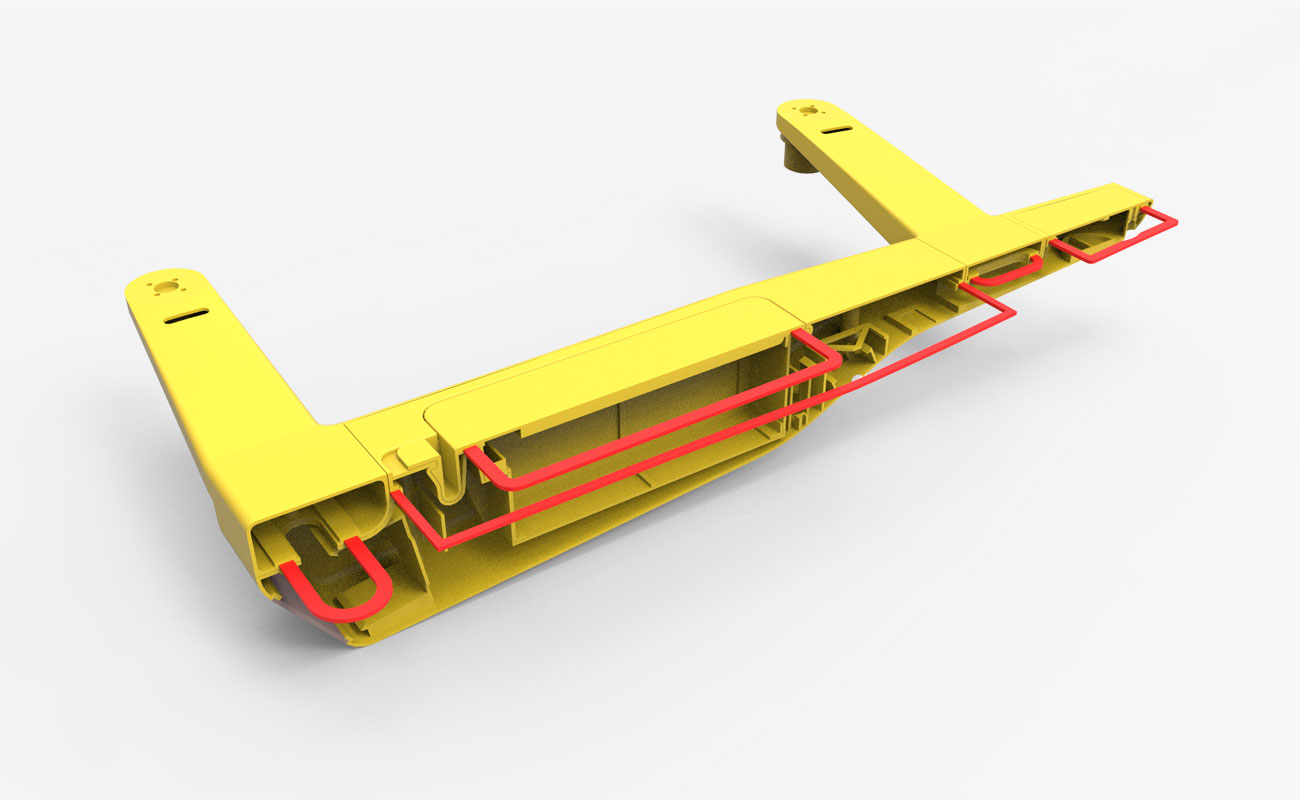

Silicone seals system provides required water resistance.

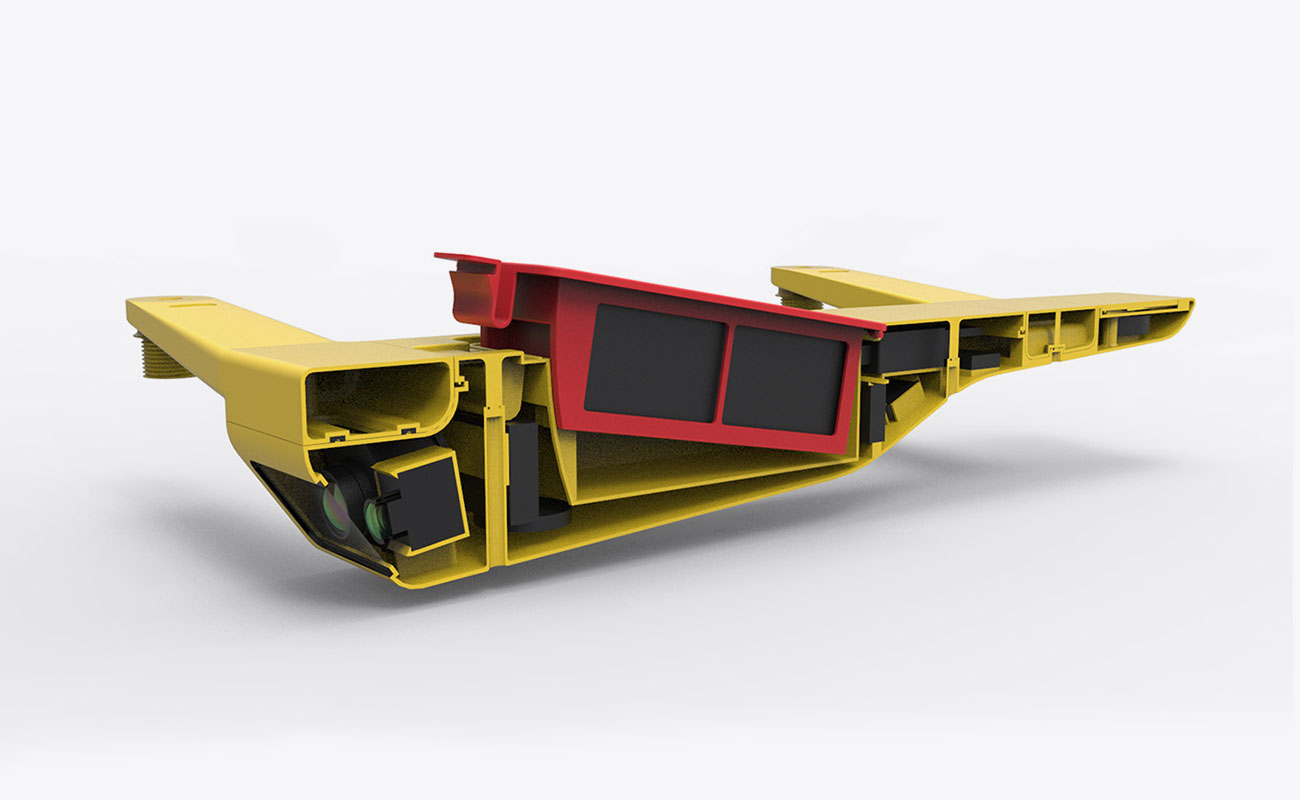

Main shell houses component mounts, modular construction allows for part replacement.

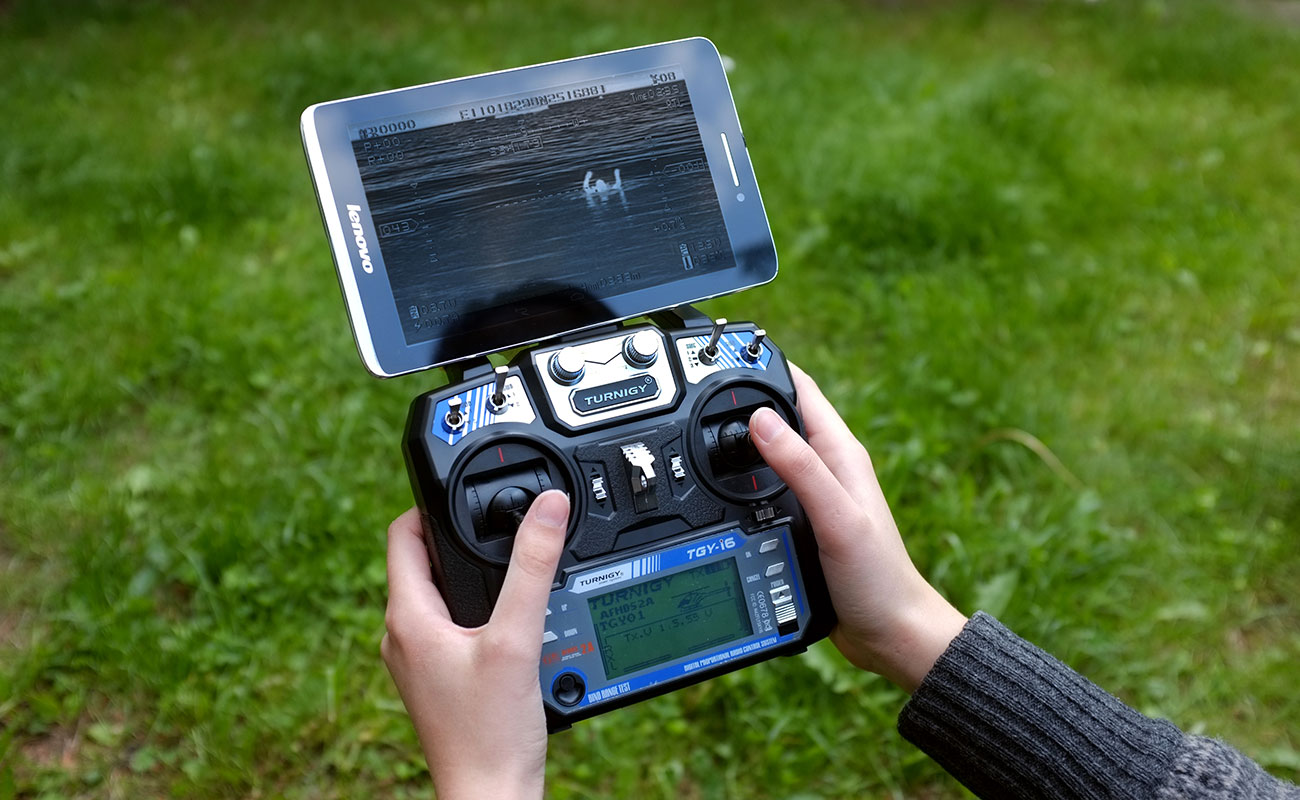

The device is controlled by an operator, thermal image visible on the screen.

Category:
Date:

June 8, 2015

Prototype:

Painted FDM print

Platform:

NAZA V2, DJI E600, FLIR Tau

Production method:

serial SLS print with Polyamide PA 3200 GF

3D software:

Fusion 360

Render:

Keyshot

School:

Academy of Fine Arts in Warsaw

Faculty:

Product design

Supervisor:

dr. Daniel Zieliński
